Tailored to Provide You Maximum Harvest Productivity
Available in 10-, 12- and 14-wheel configurations, the SR 300 Series SpeedRake® wheel rakes feature working widths ranging from 20’10” to 28’.
KUHN SR 300 Series SpeedRake® wheel rakes provide exceptional transportability and high-capacity raking to help you achieve optimum harvest productivity. The unique hybrid design, between a carted rake and a bi-fold rake, offers simplicity and high clearance, allowing you to tailor the machine to the needs of your operation. Individually floating, high-capacity rake wheel arms and a high-clearance frame offer clean raking and even crop flow for a fluffy, uniform windrow. The innovative hydraulic, parallel-folding design provides convenient operation from the tractor seat. Cantilever main raking beams eliminate the need for caster support wheels, which allows for raking closer to fences and other obstructions. The articulated rake beams allow for simple adjustment of windrow width while maintaining gentle crop flow to the windrow.
YOUR BENEFITS
Heavy-Duty and Versatile Design
Heavy-Duty Tongue & Delta Frame
Heavy-Duty Cantilever Rake Beams
Heavy-duty, square-tube rake beams provide a solid structure and outstanding durability, even when raking the widest windrows. The cantilever design provides a solid support for the rake wheels and allows them to closely follow the ground. Rake closer to fences, irrigation borders and other obstacles, without the need for caster wheels.
Alternate Raking Positions
The standard “V” raking mode gathers the maximum crop width. Standard right-side only and left-side only raking allows the customer to reach tight corners and turn over wet crop for faster drying. To switch raking positions, simply turn either quarter turn valve on either side to lock the rake wheels in the raised positioned.
Specially Curved Rake Wheel Arms
Specially curved rake wheel arms provide high capacity for uniform crop flow and neatly formed windrows. The design offers outstanding clearance when crossing over windrows or moving between fields as the rake wheels can be lifted up to 21”.
Hydraulic Parallel Folding
The hydraulic parallel folding allows the rake to be set conveniently from the tractor seat. The rake beams telescope in and out, in unison, allowing on-the-go raking width adjustment. This provides the operator the flexibility to set the working width based on the mower width and windrow width. Guide surfaces on the telescoping rake beams are high-density polyethylene (HDPE) lined, and provide smooth and reliable performance and outstanding durability. They are removable, replaceable, have simple maintenance and long life.
Rapidly Adapt to Your Field Conditions
Rapidly Adapt to Your Field Conditions
You can quickly and conveniently adjust the width by changing the working angle of the last two raking wheels on each side and independent of the raking width. This setting remains constant as the working width is altered providing on-the-go adjustability while preserving the windrow width.
Independent Rake Wheel Suspension
Individually floating rake wheels are mounted on spring-suspended arms and can be adjusted independently from front to back. This reduces soil disturbance providing cleaner raking and resulting in higher-quality hay.
Hydraulic Rake Wheel Operation
The hydraulic rake wheel operation increases spring pressure on all rake wheels simultaneously and raises the rake wheels together. Two double-acting cylinders provide active lowering of the rake wheels, eliminating the need for a tractor with a hydraulic float circuit.
Rake Wheel Lockout
The front two and back two rake wheels can be locked out to adapt to specific situation (the back three rake wheels on the SR 314). Handle heavier crop conditions more effectively by locking up the front wheels. Produce a wider windrow or turn two windrows at once without combining them by locking the rear wheels.
Easy Transport
Transport Wheels
Transport wheels are forward and centrally positioned to allow for a small turning radius, easy maneuverability on headlands and in small or oddly shaped fields.
EQUIPMENT
Raking Wheel and Hitch Extension
The SR 300 10-wheel model can be converted to a 12-wheel model with the Raking Wheel and Hitch Extension kit. This kit can easily be installed in the field. Note: The SR 312 cannot be converted to a 14-wheel model.

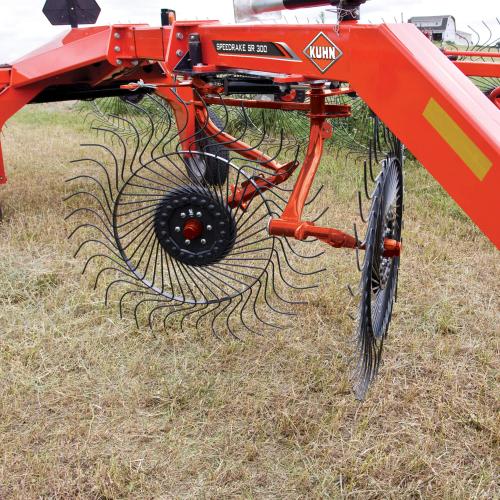

“V” Type Splitter Wheel
Excellent ground coverage ensures that all hay has been moved and also provides more complete pickup by a baler. The crop is split uniformly to each side for an even windrow formation, more consistent bale formation. This helps to fluff up the crop which results in faster drying.
Adjustable Clevis or Ball Hitch
A clevis hitch comes standard with all models. A ball hitch is optional.
Windguards
Windguards improve crop flow along the wheels for a more uniform windrow. The durable, HDPE guards are UV stable and improve raking performance in windy conditions. They also reduce wrapping in difficult conditions, such as tall, stemmy crop and corn stalks.
Tandem Axle
The tandem axles pivot up and down. This is a simple bolt on addition keeping the original tire. They are ideal for smooth and stable operation over difficult terrain.
SPECIFICATIONS
Product specifications are based on published information at the time of publication.
Product specifications are subject to change without further notice.
Contact your local KUHN Dealer for more information.
