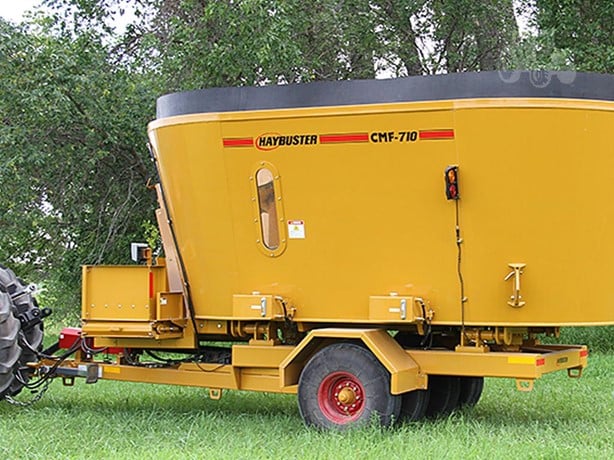

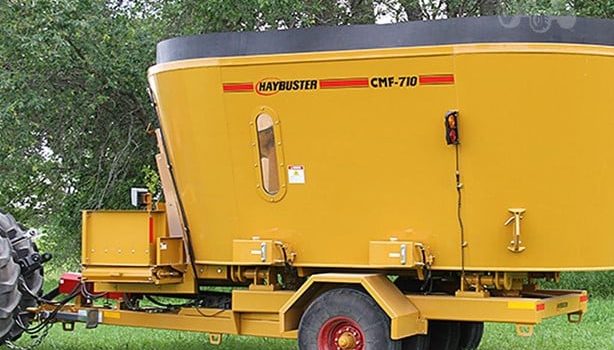

The 710 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.
They also mix materials like distillers, silage, corn and more.
Standard Features

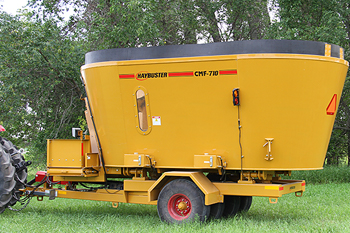

MIXING CAPACITY: The CMF-710 has a 710 cu. ft. mixing capacity with a tare weight of 18,340 lbs.

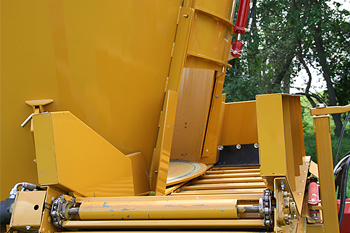

UNLOADING DOOR: Large 24” x 42” unloading door for fast, even unloading and cleaning.

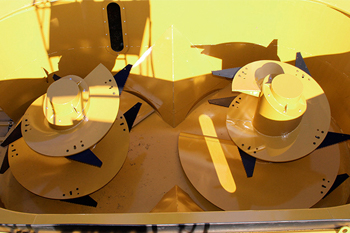

AUGERS: Heavy-duty 76” screw augers with self-sharpening serrated knives, driven by 2 HD USA gearboxes.

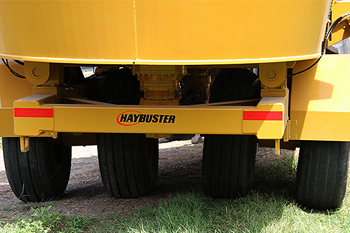

OSCILLATING AXLES: Oscillating Heavy Duty Axles with 4) 315/80 R 22.5 20-ply rated tires provide even weight distribution on uneven ground.

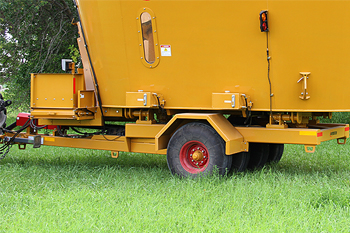

HEAVY-DUTY FRAME: The CMF-710 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and longevity

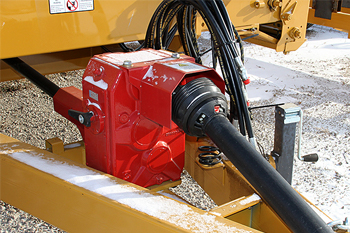

CV PTO OR OPTIONAL 2-SPEED GEAR BOX: The CMF-710 comes equipped with either a heavy-duty constant velocity 1000 rpm PTO or an optional 2-speed gearbox. The 2-speed gearbox is used for loaded startups and heavy rations.
Optional Features
Unloading Options
Cross Conveyor only with right- or left-hand drives.
Cross Conveyor with spouts or endgates. Magnets are available for the spouts.

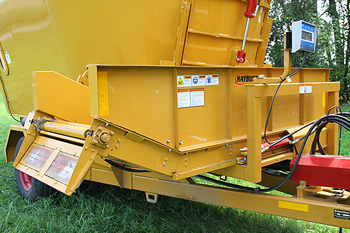

Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.

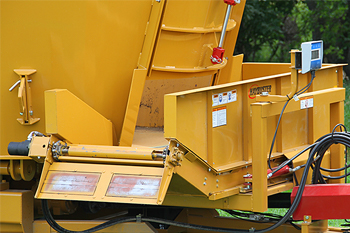

Dogleg style conveyor also available

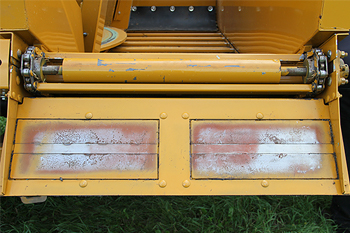

Magnets on discharge spouts
Magnets on the spouts remove ferrous metal, such as bale wire, from feed, providing the highest quality feed available.
Rear discharge door
The optional rear discharge door provides an additional means of discharging feed.
2-Speed Gear Box
The 2-speed gear box is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixers drive train.

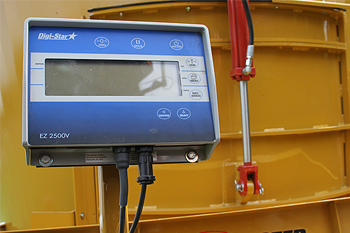

Digi-Star Scale
Choose from any Digi-Star scale indicator Also available are optional Digi-Star Feed Management Programs
FEATURES & BENEFITS
SPECIFICATIONS
| WEIGHT | |
|---|---|
| Total | 13,660 lbs. (6,196.07 kg) |
| Tongue Weight | 1,180 lbs. (535.24 kg) |

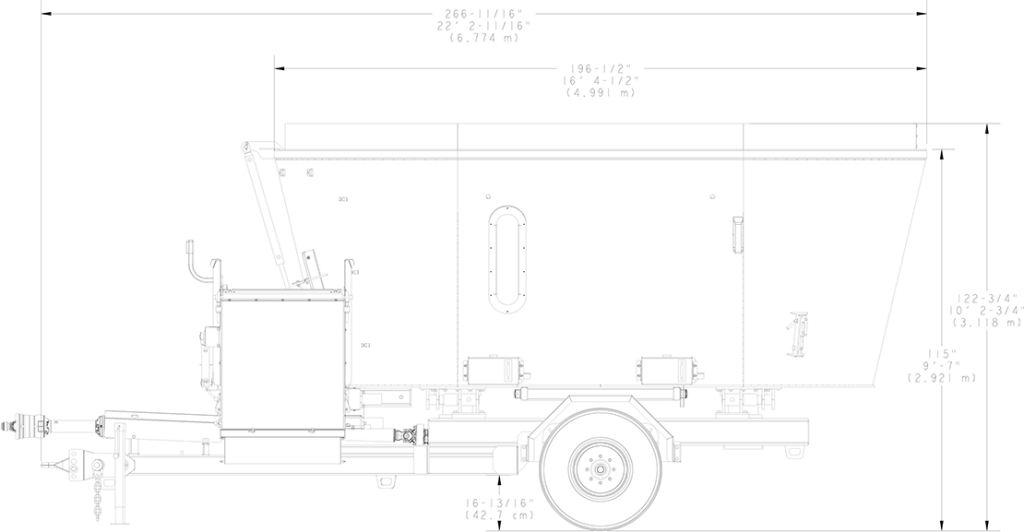

| TRANSPORT DIMENSIONS (Fully raised conveyor) | |
| Width | 10′ 1-1/2″ (3.086 m) |
| Length | 22′ 2-11/16″ (6.774 m) |
| Height | 10′ 2-3/4″ (3.118 m) |
| WORKING DIMENSIONS | |
| Width | Between 10′-2″ and 12′ Depending on Conveyor |
| Loading Height With Extensions | 10′ 2-3/4″ (3.118 m) |
| CHASSIS FEATURES | |
| Towing Arrangement | Clevis Type Hitch |
| Jack Capacity | 7,000 lbs (3175.1 kg) |
| Jack Travel | 10 in. (25.4 cm) |
| Tires | (4) 14 L-16.1-12 ply |
| Wheels | (4) 8 Hole |
| Axle | Oscillating |
| Bearings | Tapered Roller |
| Extensions | 12″ Rubber |
| CAPACITIES | |
| Mixing capacity | 710 cu. ft. (20.1 cu. m) |
| Gross Weight Capacity | 39,400 lbs (17,871.5 kg) |
| Tare Weight – TMR | 18,340 lbs (8,314.88 kg) |
| AUGERS | |
| Number | 2 |
| Diameter | 76″ (193 cm) |
| Flighting Thickness | 5/8 in. (1.59 cm) |
| Number / Thickness Knives | 14-5/16″ (0.794 cm) |
| DRIVELINE AND GEAR BOXES | |
| Drive Line | Constant velocity, 1000 rpm PTO, available in 1-3/4” (4.45 cm) or 1-3/8” (3.49 cm) |

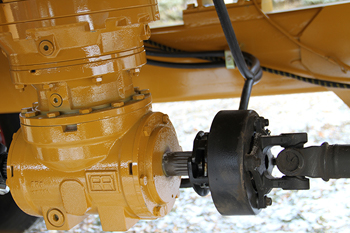

| Clutch | (2) Free motion automatic clutches |
| Gearboxes | 2- HD gearboxes with 2 year warranty |
| UNLOADING CONVEYOR | |
| Type | 36 in. (91.44 cm) Chain With Hydraulic Orbital Motors |
| Discharge Options | Left, right, both |
| Dogleg Style Conveyor Optional | 30” (76.2 cm) |
| MISCELANEOUS | |
| Door Opening | 30″ (76.2 cm) x 40″ (101.6 cm) |
| Floor Thickness | 5/8 in. (1.59 cm) |
| Side Wall Thickness | 1/4 in. (0.635 cm) |

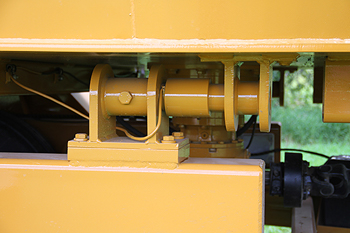

| Scale | Digi-Star 4 point scale with optional monitor |

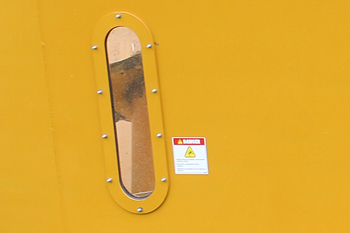

| Observation Windows | 2 |
| REQUIREMENT FOR OPERATION – TRACTOR | |
| PTO Horsepower Required | 125 HP minimum |
| PTO Type | 1000 RPM, 1-3/8” Dia. with 21 Spline |
| Min. Tractor Hydraulic Output | 8 gpm at 1500 psi (30.3 lpm X 10,345 kPa) |
| SMV Sign and Road Lights | Standard Equipment |
| Electrical | 12 VDC (battery included) |
