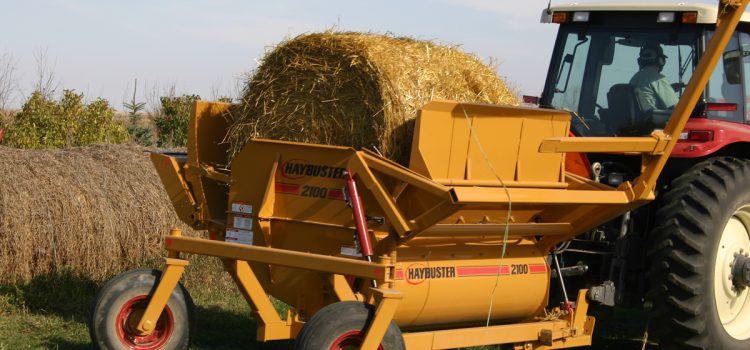

BALEBUSTER 2100

The 2100 has been an excellent erosion control tool for road sides and mining.

It is a single bale loader machine that provides solutions for:

Range feeding
Bedding
Odor control on wastewater lagoons
bunk feeding
Erosion control

Download the Literature

Standard Features

Tractor Semi Mounted, for easy maneuvering & positioning of straw.
Rear caster wheels to support weight of machine and bale.
Heavy-duty loader for easy bale loading. Just back into bale, hydraulically roll shredder frame which loads the bale.
Heavy-duty chain conveyor with more durable chain and heavier drive shafts.
1000 RPM drive that can throw straw up to 40 feet.
Easily adjustable deflector for feeding or bedding.

Optional Features

Stripper channel kits
Category II/III Quick-Tach Hitch
Wide Deflector Belt

FEATURES & BENEFITS

Semi-Mounted

The 2100 Balebuster is semi-mounted, making it easy to maneuver and back into tight places. This semi-mounted unit transfers approximately 55% of the 2100’s operating weight directly to the tractor, keeping the weight off the Balebuster.

Heavy Duty Loader

This machine is self-loading, and it only requires one person to operate.

Shredder Chamber

The Shredder Chamber has a 3-chain slatted conveyor that provides the needed traction to handle all round bales: hard or soft core. The chamber is 15% larger than previous models, reducing spillage and making hay and straw placement much easier. It processes hay into usable rations, making your hay go farther and reducing your costs.

Heavy Duty Offset Rotors, Flails, & Clearance

This unit’s heavy-duty offset rotor, flails, and reduced flair tip clearance work together to throw straw further and process both dry and wet bales.

Spreads Straw up to 40 Feet

As a primary concern for farmers, preventing accelerated soil erosion and minimizing sedimentation. The 2100 Balebuster is the perfect solution for excellent erosion control.

Wide Spread Caster Wheels

The 2100’s strong caster wheels and large 9.5×14 8-ply tires combine to easily navigate over boggy ground and rough terrain. They also provide additional stability and ease of backing.

Easily Adjustable Deflector

This bale processor is equipped with a variable position deflector that is easily adjustable.

SPECIFICATIONS

WEIGHT
Total	3,700 lbs. (1,678 kg)
SHIPPING DIMENSIONS
Width	8 ft. 5 in. (2.6 m) loader & deflector folded.
Length	12 ft. 9 in. (3.89 m)
Length	8 ft. 5 in. (2.6 m) caster wheels removed.
Height	6 ft. 5 in. (1.96 m) loader folded.
TRANSPORT DIMENSIONS
Width	10 ft. 8 in. (3.25 m)
Length	12 ft. 9 in. (3.89 m)
Height	6 ft. 5 in. (1.96 m) loader folded
WORKING DIMENSIONS (WITH BALE)
Width	13 ft. (3.96 m)
Length	12 ft. 9 in. (3.89 m)
Height	9 ft. 8-3/4 in. (2.97 m)
CHASSIS FEATURES
Hitch	Semi-Mounted, attaches to lower Lift Links of Tractor’s 3-PT Hitch
Tires	(2) 9.5 x 14 – 8-Ply
Wheels	(2) 6 x 14 – 5 Bolt Drop Center
Bearings	Tapered roller
Axle	Caster
BALE LOADER
Type	Hydraulic with mechanical linkage
Bale Tines	(2) fixed width
Hydraulic Cylinder	(2) 2-1/2″ x 16″ (6.35 cm x 40.64 cm) double acting
BALE CONVEYOR
Type	3 Roller Chains with Bolt-on Cross Slats
Drive	Hydraulic Motor with Hydraulic Flow Control
BALE SHREDDER CHAMBER
Max. Bale Size	6 ft. long x 6-1/2 ft. dia. (1.83 m x 1.98 m)
Max. Bale Weight	2,000 lbs. (907 kg)
Rotor Length	78 in. (1.98 m)
Rotor Diameter (Flails extended)	25 in. (63.5 cm)
Rotor Bearing	Ball, 1-3/4 in. (4.45 cm)
Number of Flails	30
Flail Type	Heavy Duty Flails, 7/16 in. (11.11 mm) Thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging
Number of Stripper Plates	1
Number of Slug Bars	5
Deflector Shield	6 Adjustment Positions through 120 degree range
Max. Horizontal Spread	Straw up to 50 ft.
OPERATOR CONTROLS
Loader	1 set of Tractor Hydraulic Outlets
Bale Conveyor	1 set of Tractor Hydraulic Outlets
Bale Conveyor Speed	Adjustable Hydraulic Flow Control Valve
Slug Bar	Shim adjustable
Deflector Shield Position	Hand Lever with 6 Position Settings through 120 degree range
REQUIREMENTS FOR OPERATION TRACTOR
PTO Horsepower required	65 to 155
Three Point Hitch	CAT II / III
Min. Hitch Lift Capacity	4,000 lbs. (1,814 kg)
PTO Type	1000 RPM, 1-3/8 in dia Shaft with 21 Splines
Min. Hydraulic Output	8 gpm at 1800 psi (30.3 lpm x 12,410.56 kPa)
Hydraulic Remote Controls	2 Double-Acting Control Valves with Quick Coupler Outlets
Tractor Weight	Must be of equal or greater weight than that of a 2100 BALEBUSTER and 1 Bale
SMV Sign	Standard equipment
Road Lights	Standard equipment
