A central command console is conveniently located and controls all the functions of the machine. An optional remote control is available to keep you out of the dust. It controls the tub rotation, conveyor lift, conveyor articulation, and engine stop. The electronic governor keeps the engine RPMs constant, resulting in increased effeciencies and constant load.

The enclosed engine compartment and rotary self-cleaning screen protects the engine from dirt and debris buildup. An enclosed engine compartment also reduces the noise level. The 1155 also gives you easy access to the engine with a 3-door entry on either side, plus a front door to the radiator.

Powered by either a 475 HP (354 kw) or a 540 HP (403 kw) C15 Caterpillar Electronic diesel engine whose state-of-the-art electronic fuel injection system, this engine decreases fuel consumption. This allows it to produce ground hay at a rate that will make you money on every job. It’s strong enough to chew through those tough, wet bales, and it has all the features you’ve come to expect from Caterpillar, including reliability, cold weather starting, unsurpassed product support, and proven resale value.

The KPTO fluid coupler transmits power with up to 98% efficiency and eliminates the mechanical clutch. It’s goof-proof. Acting as a torque limiter, it can engage or disengage at full engine RPM without damage – reducing the chance of problems in the drive train. Additionally, the KPTO fluid coupler requires minimal maintenance.

The 30 in. wide x 26 ft. long stacking conveyor piles hay to over 18 feet in height. The conveyor can oscillate left to right up to 50 degrees, which means you can not only make the pile tall, you can make it wide as well.

The Big Bite hammermill is located at the rear of the sub frame, reducing the length of the belly conveyor, improving the belly conveyor service accessibility, and moving the dust away from the operator. The hammermill is also dynamically balanced to give you smoother operation, longer life, and less maintenance.

The 11 ft. wide x 50 in. deep tilt tub opens a full 90 degrees for access to the hammermill and screens as well as for normal servicing.

The 11 ft. wide x 50 in. deep tub has tip in tub flares (sides). The sides are folded in to narrow the transport width of the grinder.

The enclosed engine compartment and rotary self-cleaning screen protects the engine from dirt and debris buildup. An enclosed engine compartment also reduces the noise level. The 1155 with grapple loader also gives you easy access to the engine with a 3-door entry on either side, plus a front door to the radiator.

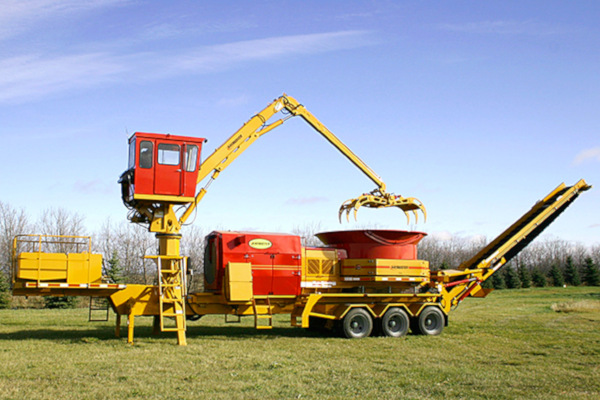

The 7000 series cab rotates 270 degrees with the boom, includes all controls for operating the grinder along with electro/hydraulic joystick controls for grapple loader operation, has hydraulic outrigger legs for increased stability, and the cab can be raised up to 4 feet for unobstructed view and operator comfort.

The 7000 series grapple loader features a 29’ fabricated boom, 8’4” wide reach grapple, replaceable grapple teeth, and an optional scale on the grapple can weigh individual bales.
