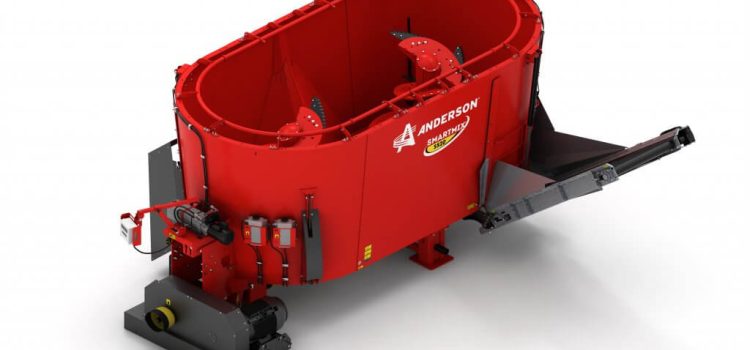

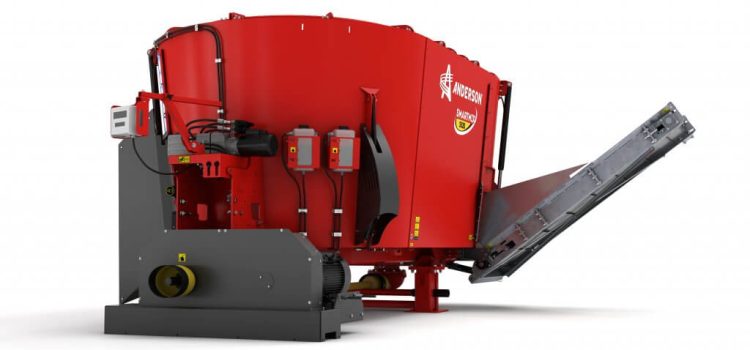

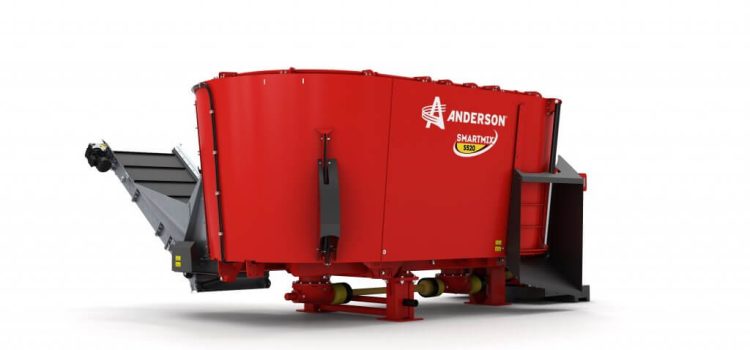

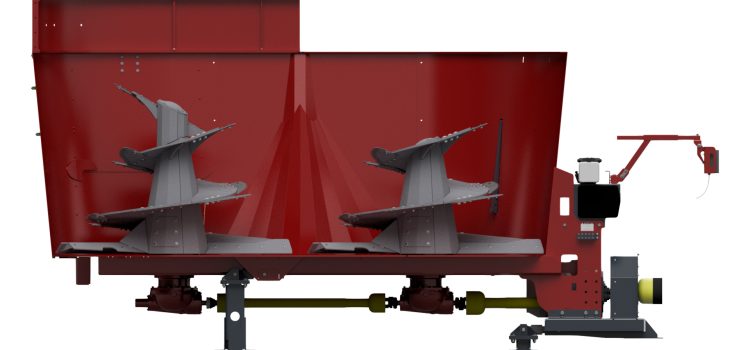

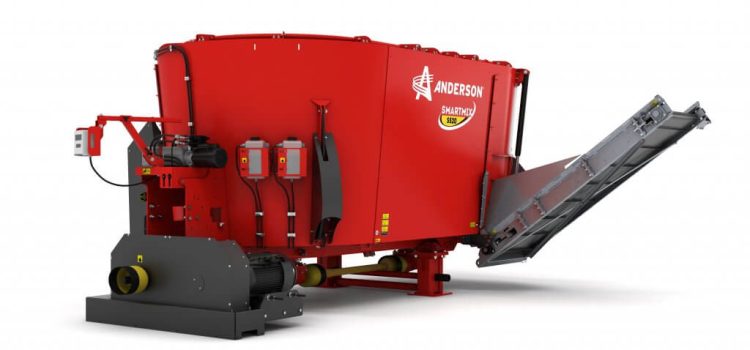

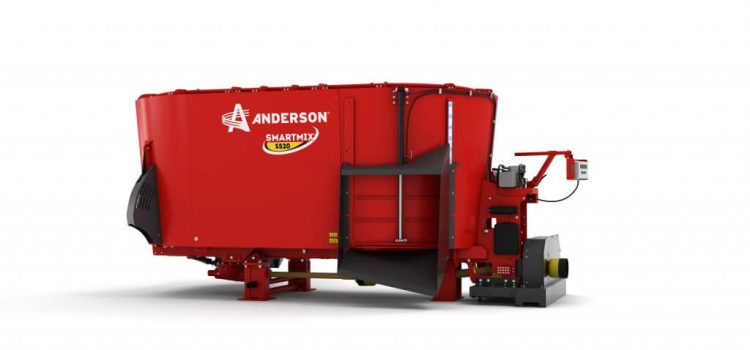

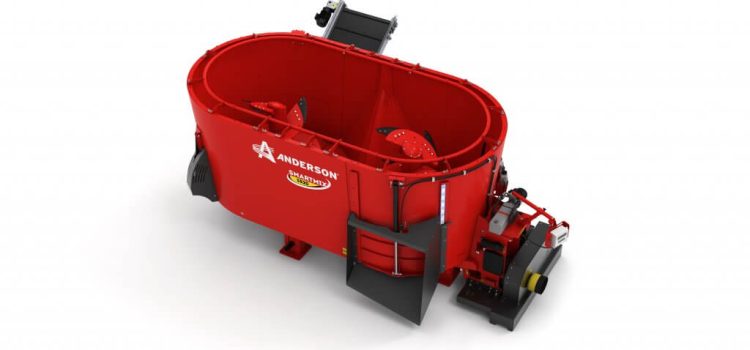

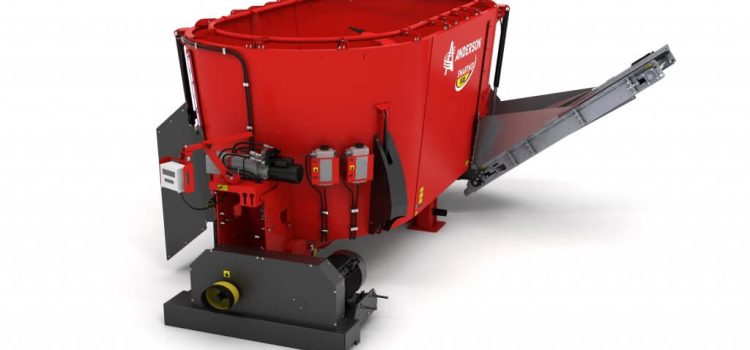

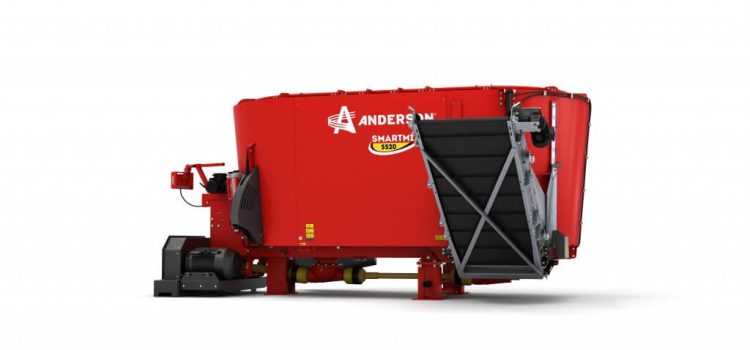

The Anderson stationary type S520ST twin auger mixer (side trap discharge) has the ability to mix the widest variety of ingredients. Process large amount of hay, even complete square and round bales of baleage. Whether your rations are designed to increase milk production of dairy cows or minimize variation in feed for each group you feed, vertical mixer will help optimize the dry matter and nutrient intake of your herd.
SPECIFICATIONS
| Capacity (no capacity extension) | 520 ft3 (14,7 m3) |
| 6 in capacity extension | 574 ft3 (16,3 m3) |
| 12 in capacity extension | 628 ft3 (17,8 m3) |
| 18 in capacity extension | 682 ft3 (19,3 m3) |
| Number of Auger | 2 |
| Length (A) | 208 in (5,27 m) |
| Height (B) no extension | 98 in (2,5 m) |
| 6 in capacity extension | 104 in (2,65 m) |
| 12 in capacity extension | 110 in (2,8 m) |
| 18 in capacity extension | 116 in (2,95 m) |
| Hay retention ring (additionnal height) | 0 in / 3,5 in |
| Width (C) | |
| Without incline conveyor | 101 in (2,57 m) |
| With incline conveyor (retracted) | 115 in (2,92 m) |
| Incline conveyor operating angle (degrees) | 23 @ 39 |
| Lateral distance to discharge inint (D) | |
| Incline conveyor 3ft Chain-Belt 26° | 29in(74cm) -33in(83cm) |
| Incline conveyor 4ft Chain-Belt 26° | 33in(83cm) -37in(94cm) |
| Incline conveyor 5ft Chain-Belt 26° | 39in(99cm) -43in(109cm) |
| Incline conveyor 6ft Chain-Belt 26° | 43in(109cm) -47in(119cm) |
| Incline conveyor 7ft Chain-Belt 26° | 49in(124cm) -53in(135cm) |
| Incline conveyor 8ft Chain-Belt 26° | 53in(135cm) -57in(145cm) |
| Incline conveyor 3ft Chain-Belt 40° | 39in(99cm) -39in(99cm) |
| Incline conveyor 4ft Chain-Belt 40° | 46in(117cm) -46in(117cm) |
| Incline conveyor 5ft Chain-Belt 40° | 56in(142cm) -56in(142cm) |
| Incline conveyor 6ft Chain-Belt 40° | 62in(157cm) -62in(157cm) |
| Incline conveyor 7ft Chain-Belt 40° | 72in(183cm) -72in(183cm) |
| Incline conveyor 8ft Chain-Belt 40° | 79in(201cm) -79in(201cm) |
| Discharge height (E3) | |
| Floor ST (E1) / Conveyor FD (E2) to ground | 33 in (0,84 m) |
| PTO shaft – Standard specification | 540 RPM 1’’ 3/8 Z6 |
| Minimum PTO HP Requirement – High Speed | 60 |
| Auger RPM – Standard High speed | 17 RPM |
| Standard planetary model and ratio configuration | 1603 @25,89 |
| Floor Thickness (AR235 grade or equivalent) | 5/8 in |
| Sidewall Thickness (AR235 grade or equivalent) | 1/4 in |
| Flighting Thickness (AR235 grade or equivalent) | 5/8 in |
| Standard knives per auger | 6 / 10 optional |
| Driveline security | Shear bolt |
| Load cell | 3 |
| Scale system | Option DG500 |
| Machine Weight (empty) – STD configuration | 12 431 lb (5638 kg) |
| Utility load capacity | 15 080 lb (6839 kg) |
