The Anderson A280 single auger mixers (side trap discharge) have been developed for farms where the footprint of the machines is an important factor. These mixers are compact and highly maneuvrable. The rear axle has been integrated to offer overall a very low height and perfect maneuvering. These low tubs easily fi nd their place on farms with low ceilings.
FEATURES & OPTIONS
- Capacity 282 cu3 to 367 cu3
- Reinforced tub fl oor provides longevity of the tub and also to the load cells by equalizing the weight uniformly.

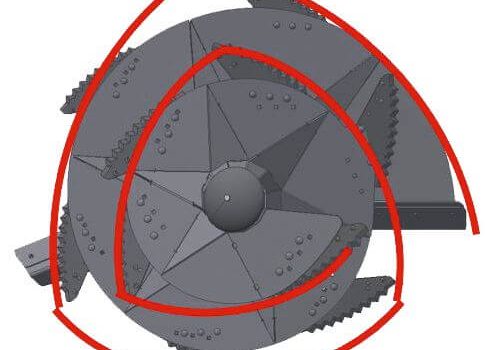

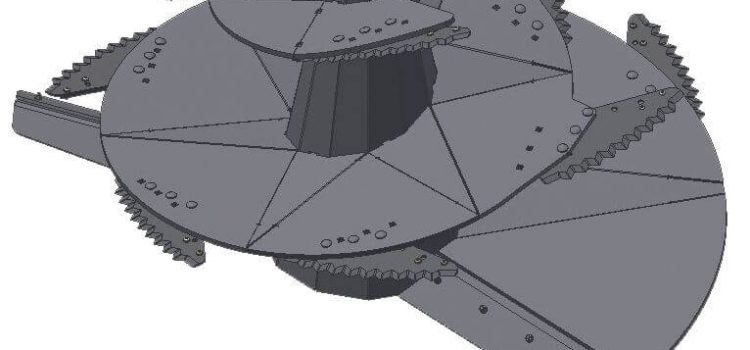

- TRI-CUT™, auger with 2-position adjustable and reversible knives (10 standard) and 2 sweeping dispensers ensuring a 30% faster and more consistent discharge.
- Side trap discharge designed with a sloped fl oor. Optional magnet can be installed as well. Side trap can also be equip with inclined conveyor.

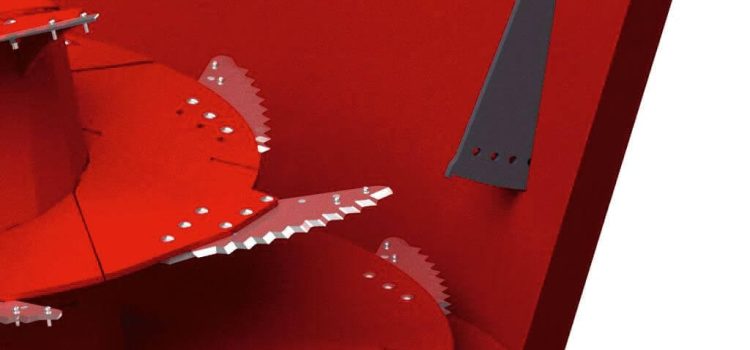

- Carbide treated self-sharpening tungsten knives.
- Industry’s fi rst hydraulic TRUE-CUT™ restrictor blades allows the operator to engage and disengage during the mixing process preventing all risks of overprocessing feed.
- The DG500 indicator is a universal, programmable weighing indicator for recipes, dispensing and data storage. It guarantees an extremely precise weighing thanks to the protected load cells and strategically located under the tank. Compatible with the DTM suite.
- 3-point scale system.
- Rolled side walls (not bent) for better fl ow of material, avoiding restriction around auger and naturally increased sturdiness.

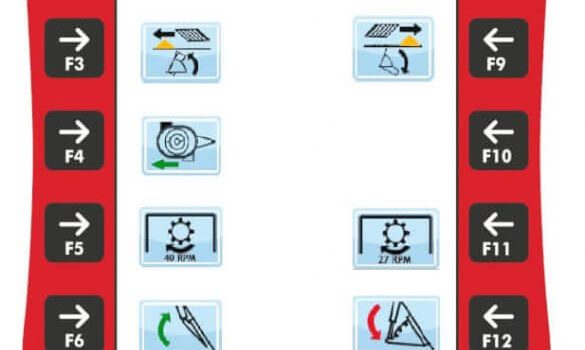

- SMART CONTROL remote control (optional) provides you full wireless control to: customize weighing system and recipe, hydraulics, speed of belt etc.
SPECIFICATIONS
| Capacity (no capacity extension) | 280 ft3 (7.9 m3) |

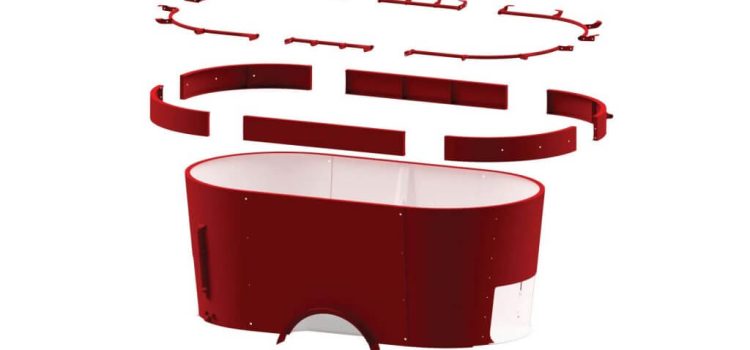

| 6 in capacity extension | 316 ft3 (9 m3) |
| 12 in capacity extension | 352 ft3 (10 m3) |
| 18 in capacity extension | 388 ft3 (11 m3) |
| Number of Auger | 1 |

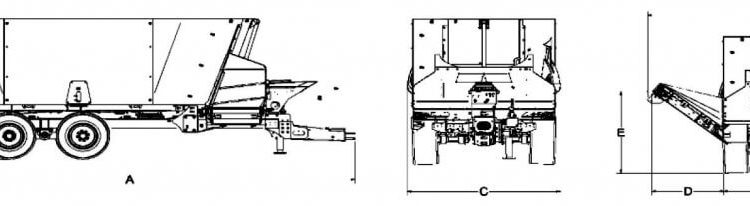

| Length (A) | 176 in (4.46 m) |
| Height (B) no extension | 98 in (2.49 m) |
| 6 in capacity extension | 104 in (2.64 m) |
| 12 in capacity extension | 110 in (2.79 m) |
| 18 in capacity extension | 116 in (2.95 m) |
| Hay retention ring (additionnal height) | 0 in / 3,5 in |
| Width (C) | |
| Without incline conveyor | 90 in (2.29 m) |
| With incline conveyor (retracted) | 106 in (2.69 m) |
| Incline conveyor operating angle (degrees) | 26 @39 degrees |
| Outside width of the wheels | 86 in (2.18 m) |
| Lateral distance to discharge point (D) | |
| Incline conveyor chain / belt 3 ft at min.26 angle /max 40 | 36-29in at 26º / 33-26in at 40º |
| Incline conveyor chain / belt 4 ft at min. 26 angle /max 40 | 36-40in at 26º / 47-47in at 40º |
| Incline conveyor chain / belt 5 ft at min. 26 angle /max 40 | 43-47in at 26º / 57-57in at 40º |
| Incline conveyor chain / belt 6 ft at min. 26 angle /max 40 | 47-51in at 26º / 64-64in at 40º |
| Incline conveyor chain / belt 7 ft at min. 26 angle /max 40 | 54-58in at 26º / 74-74in at 40º |
| Incline conveyor chain / belt 8 ft at min. 26 angle /max 40 | 59-63in at 26º / 80-80in at 40º |
| Discharge height (E) | |
| Incline conveyor chain / belt 3 ft at min. 26 angle /max 40 | 32-36in at 26º / 41-41in at 40º |
| Floor ST (E1) / Conveyor FD (E2) to ground | 30 in (0.77 m) |
| PTO shaft – Standard specification | 540 RPM 1″ 3/8 Z6 |
| PTO shaft – Option specification | N/A |
| 2 speed Gear Box | N/A |
| 2 Speed Gear Box and ratio | N/A |
| Minimum PTO HP Requirement – Low Speed | N/A |
| Minimum PTO HP Requirement – High Speed | 60 |
| Auger RPM – Low Speed | N/A |
| Auger RPM – Standard High speed | 41 RPM |
| Standard planetary model and ratio configuration | 1602 @13.4 |
| Optionnal Planetary | N/A |

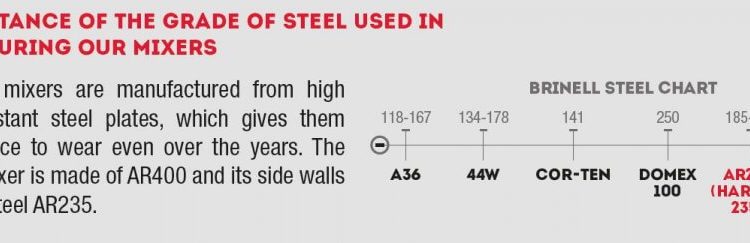

| Floor Thickness (AR235 grade or equivalent) | 5/8 in |
| Sidewall Thickness (AR235 grade or equivalent) | 1/4 in |
| Flighting Thickness (AR235 grade or equivalent) | 5/8 in |
| Standard knives per auger | 6 / 10 optional |
| Driveline security | Shear bolt |
| Hydraulic flow requirement | 10-15 US gal/ m in 37-56 L/ m in |
| Hydraulic pressure | 160-200 bar (2300-2900 psi) |
| Load cell | 3 |
| Scale system | DG500 (standard) |
| Machine Weight (empty) – STD configuration | 7067 lb (3205 kg) |
| Utility load capacity | 8120 lb (3683 kg) |
| Axle – Standard specifications | Single |
| Axle – Optional specifications | N/A |
| Wheels – Standard specifications | 15.0/55-17 26 PLY |
